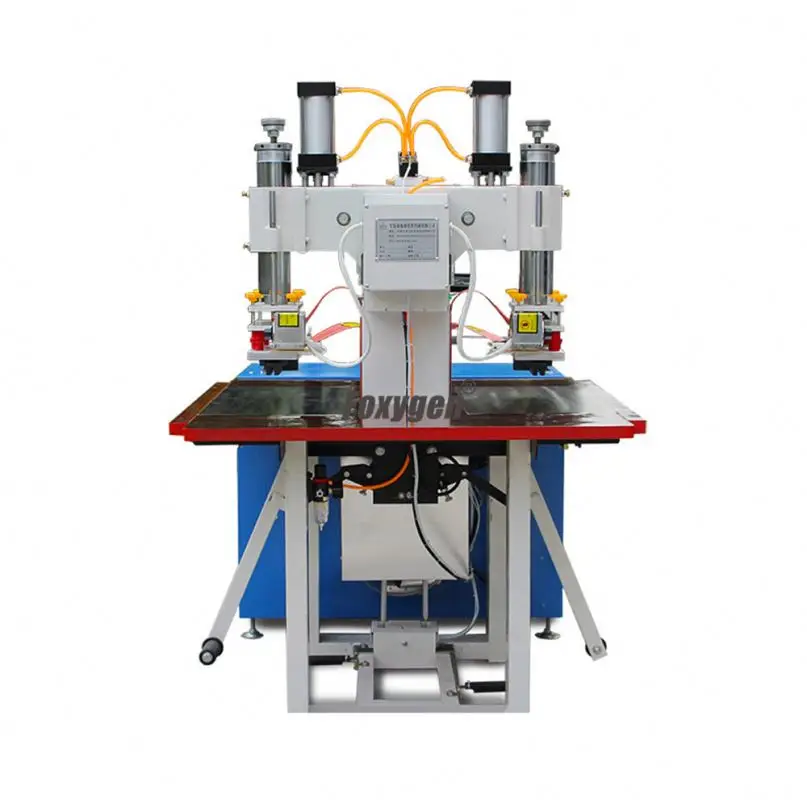

Stretch PVC Ceiling Film High Frequency Double-head Welding Machine
High Frequency Welding Machine
Core Features
Description
Product Description
Specifications
| Model | FG5 | FG8 | |
| H.F.output Power | 5KW | 8KW | |
| Oscillation Frequency | 27.12MHZ | ||
| Power Supply | AC220/380/400/415/440V 3PHASE | ||
| Input Power | 8.5KVA | 15KVA | |
| Oscillation Tube | 7T85RB | 7T69RB | |
| Max pressure(kg) | 500kg | ||
| Working space | 60mm | ||
| Max Gap of Electrodes(mm) | 80mm | ||
| Electrode size(mm) | 350mm*700mm | ||
| Operation mode | Pneumatic & Foot pedal | ||
| Net Weight(kg) | 350kg | 475kg | |
| Gross Weight(kg) | 440kg | 605kg | |
| Packing measurement(mm) | 1800(L)*1220(W)*1710(H)mm | ||
Application Range
Foxygen Stretch ceiling welding MachineApplication Range
Foxygen Stretch ceiling welding Machine
Features and Functions
1. Anti-spark electric device
When the spark occurring, the high sensitiveness spark electric protection system will cut the high frequency power immediately to protect the mould and material.
2. Jamming prevention device
Equipped with high frequency stabilizer and magnetic leakage suppressor, this device can prevent the leakage of electromagnetic radiation to avoid other electrical instruments jamming such as televisions and radios, etc.
3. Safety device
When the current over its limit, the overload relay works automatically to protect the oscillation tubes and rectifier. The frequency deviation caused by mistake is avoided.
4.The special mechanical structure
With a excellent design and structure, the machine can works precisely and intensively.
5.Easy tuning and special protection circuit
The selectable output power can ensure the stable quality of the product. While the welding process, it could largely reduce the heating time.
6.Pneumatic Pressure Device
It is provided pneumatic pressurizing device, which can adjust the pressure in the practical situation, greatly decrease the operation difficulty and impaction equipments, changing the controlling method may modify the high-frequency process technology.
Our Services
services:
1. Professional communication;We promise all inquiry will be replyed during 24 hours ;
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
