FOXYGEN Remote Control Brightness Adjustment Stretch Film Kabu Display LED bar Strip 12v 24V LED Backlight Strip
Factory Custiomize Color 175° Luminous angle LED Bar Strip for Advertising & Ceiling Use
| Item | Specification |
| Product Name | Diffuse LED STRIPS - G1-3 |
| Input Voltage | DC 24V/DC 12V |
| Color | 3000K/4000K/5000K/ 6000K/12000K/or customize |
| Certifacates | CE, SGS,RoHS, UL |
- Overview
- Recommended Products
Customizable color temperature and voltage, with optional color temperature from 3000K to 12000K, suitable for power supply worldwide.
Please consult customer service to match power supplies, dimmers or remote controllers. We provide stretch ceiling films, advertising light boxes and all accessory samples for VIP customers.
Samples are free of charge.
Tips：
* The price of the weatherproof version is different from the standard version. If you need weatherproof lights, please contact sales staff for pricing details.
* Before placing an order, please provide detailed information about your required products (such as local voltage, local socket type, etc.).

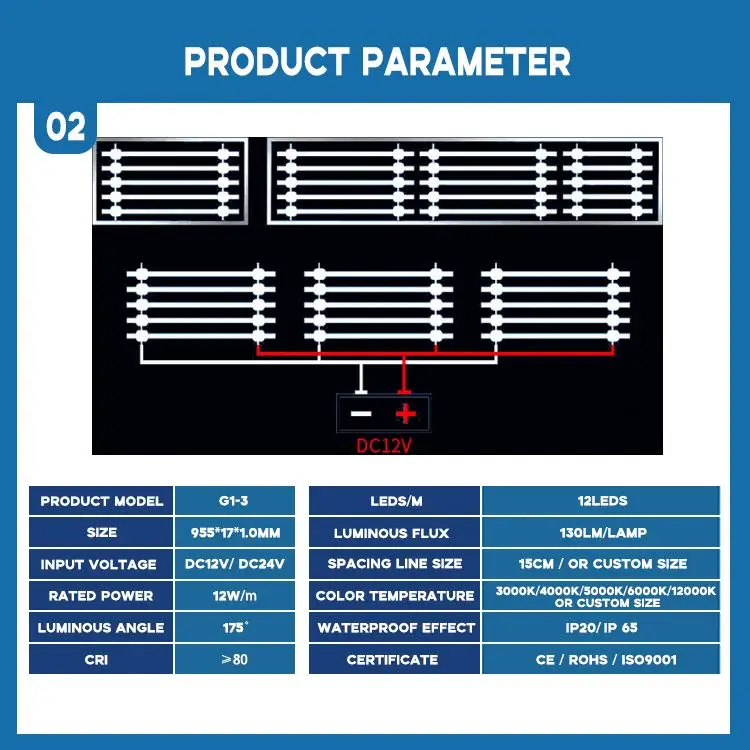

Product parameter
Product Name |
Diffuse LED STRIPS - G1-3 |
Input Voltage |
DC 24V/DC 12V |
Size (mm) |
955*17*1.0MM |
Rated power |
12W/m |
Color |
3000K/4000K/5000K/ 6000K/12000K/or customize |
Certifacation |
CE, SGS,RoHS |
Luminous Flux |
130LM/Lights |
Bear Angle |
175° |
color rendering index |
≥80 |
Application |
Suitable for various large office buildings, conference halls, teaching buildings and other places |
Spacing Line Size |
15CM / or custom size |
Lifespan |
30000H |
Leds |
12 lights/m |
Products Description

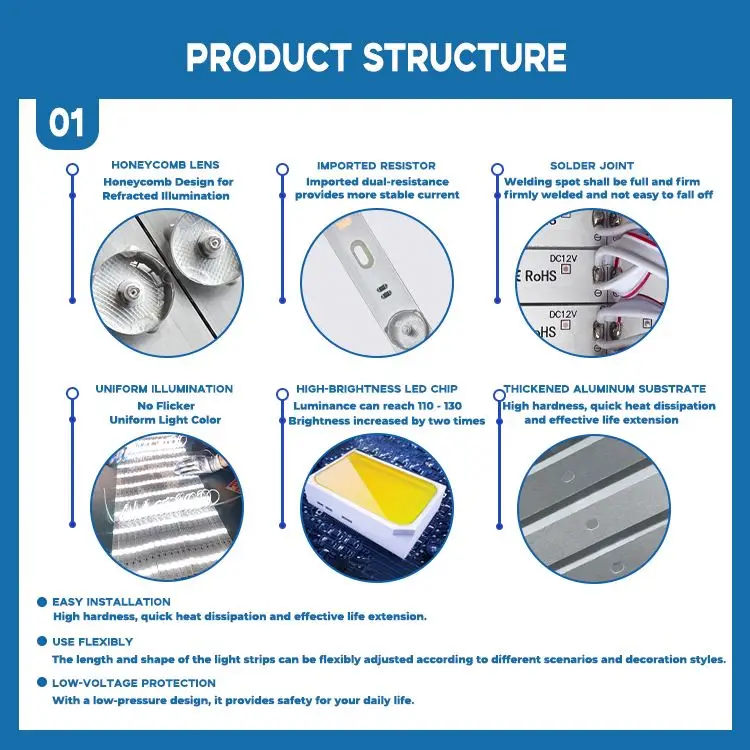

Product advantage
* Uses PMMA optical lens: 175° light angle, even light with no shadows, super bright.
* 3 chips and 2 resistors: longer service life.
* Uses thick, high heat-conducting aluminum substrate.
* San'an chips: 130LM per light. Can cut single lights.
* Pure copper tinned wire: flame-retardant, cold-resistant, 0.75 square in size.
* Suitable for all kinds of film light boxes, cloth-covered light boxes and soft film ceilings.
* 3 chips and 2 resistors: longer service life.
* Uses thick, high heat-conducting aluminum substrate.
* San'an chips: 130LM per light. Can cut single lights.
* Pure copper tinned wire: flame-retardant, cold-resistant, 0.75 square in size.
* Suitable for all kinds of film light boxes, cloth-covered light boxes and soft film ceilings.
Lighting Advantages
①Input voltage: DC24V, low voltage drop, high brightness
②High brightness, uniform light emission, no shadow
③Extra extra wide beam angle for more even backlighting effect
④Flexible placement, easy installation, safe and stable
⑤Full spectrum with high color rendering index

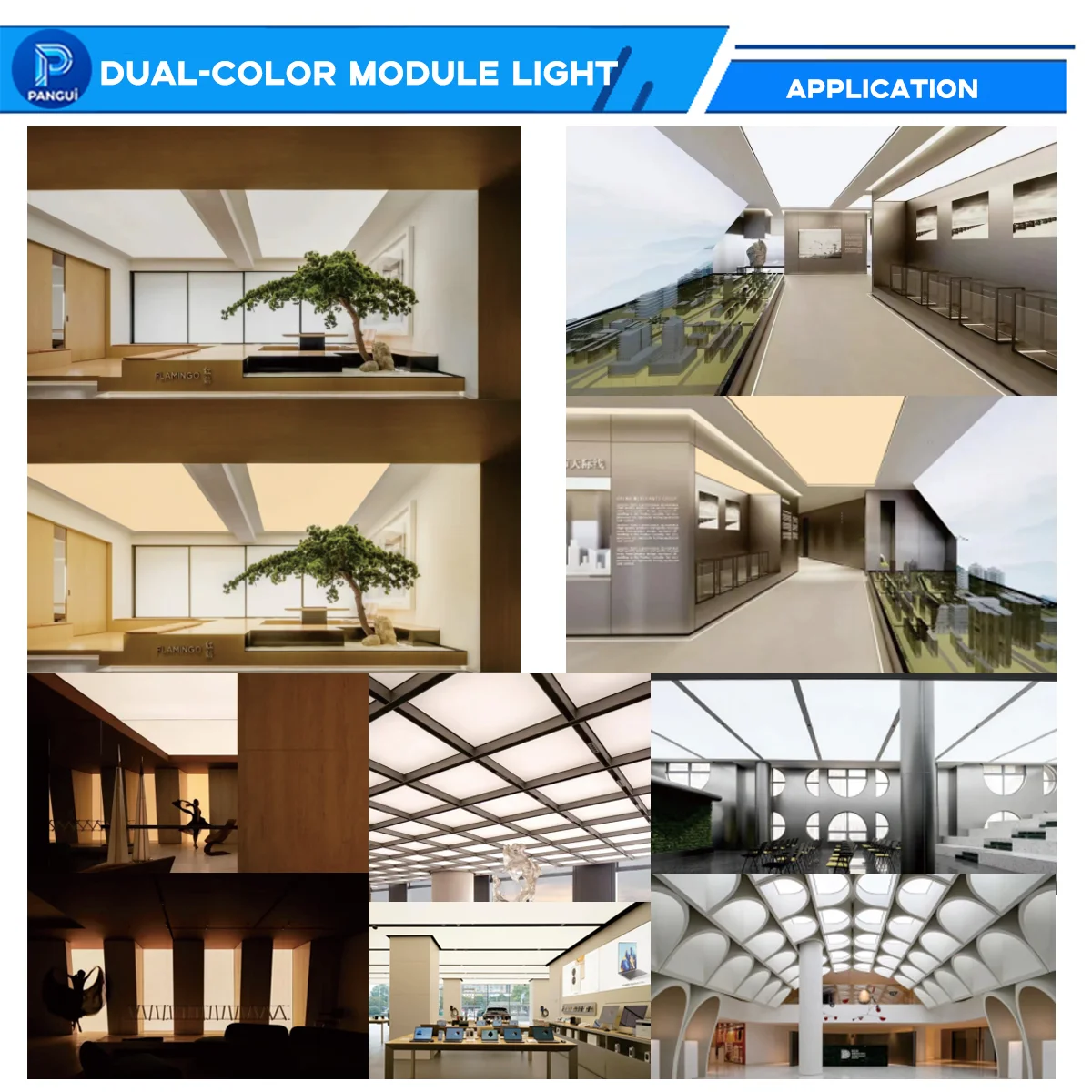

Product Application
1. Suitable for all kinds of large office buildings, conference halls, teaching buildings and other places
2. Suitable for marble background, punched plate and other scenes
3. Suitable for large lighting projects such as movie and television city, Internet red store, brand chain store, shopping mall
4. Suitable for shopping mall decorative lighting, aluminum trough, flexible silicone linear lamp, bar, KTV and other fields
5. Suitable for double-sided light box, guide signs, large bus stops and other scenes
6. Suitable for dry auto lighting, stage lighting, city lighting, home appliance atmosphere light, time tunnel, Ferris wheel, smart home and other fields
7. Widely used in home lighting, aluminum groove, silicone linear lamp
8. Widely used in advertising signs, shopping malls, gyms, e-sports, home, decoration and other scenes
9. Widely used in movie and television city, theme restaurants, American exhibition, Internet celebrities punch card points
Recommend Products
LED Strips（Modern）
LED Strips
* Uses PMMA optical lens:175° light angle, even light with no shadows, super bright.
* Safe to use: 170-265V high-voltage input. Good quality driver resists surges, lightning, and interference.
* Has 3 chips and 2 resistors: longer service life.
* Can cut single lights. Pure copper tinned wire: flame-retardant, cold-resistant, good heat dissipation.
* Brightness and color temperature adjustable: modes switch freely. Controllable by remote or panel.
Suitable for all kinds of soft film light boxes, cloth-covered light boxes and soft film ceilings.
* Safe to use: 170-265V high-voltage input. Good quality driver resists surges, lightning, and interference.
* Has 3 chips and 2 resistors: longer service life.
* Can cut single lights. Pure copper tinned wire: flame-retardant, cold-resistant, good heat dissipation.
* Brightness and color temperature adjustable: modes switch freely. Controllable by remote or panel.
Suitable for all kinds of soft film light boxes, cloth-covered light boxes and soft film ceilings.
Tips：Different products have different features and functions. The above info doesn't show all products' features. For details, please send an inquiry to the sales staff.
LED Modules（4LEDS, 6LEDS, 8LEDS, 12LEDS）
LED Modules
* Uses current expansion diode technology, 1 high-brightness lamp bead: brighter light, more even color.
* With PMMA optical lens: 175° light angle, uniform color.
* Flexible lamp line placement, male-female connectors: easier to install.
* Uses brand 1935, 16703 IC with breakpoint resume: more stable, no maintenance needed.
* Adjustable colors: makes light boxes more creative and new.
* Single piece can be cut, arranged freely: better for irregular-shaped light boxes.
Suitable for: film studios, internet-famous stores, brand chain stores, large shopping mall projects, large office buildings, meeting rooms, teaching buildings, etc.
* With PMMA optical lens: 175° light angle, uniform color.
* Flexible lamp line placement, male-female connectors: easier to install.
* Uses brand 1935, 16703 IC with breakpoint resume: more stable, no maintenance needed.
* Adjustable colors: makes light boxes more creative and new.
* Single piece can be cut, arranged freely: better for irregular-shaped light boxes.
Suitable for: film studios, internet-famous stores, brand chain stores, large shopping mall projects, large office buildings, meeting rooms, teaching buildings, etc.
Tips：Different products have different features and functions. The above info doesn't show all products' features. For details, please send an inquiry to the sales staff.
LED Light（Landscape）
Other Light
LED Strips
* Light strip with diffused reflection lens: wide light angle, more even light.
* Many models and sizes available, good flexibility.
* Strong weather resistance: not easy to crack, long service life.
* Suitable for: advertising light boxes, ceiling soft films, shopping mall decorative lighting, aluminum channels, flexible silicone linear lights, bars, KTVs, etc.
Power supply
* Many models and sizes available, good flexibility.
* Strong weather resistance: not easy to crack, long service life.
* Suitable for: advertising light boxes, ceiling soft films, shopping mall decorative lighting, aluminum channels, flexible silicone linear lights, bars, KTVs, etc.
Power supply
* Ultra-thin look, small size: easy to install.
* All-aluminum: better heat dissipation, can carry more electricity.
* More consistent. High efficiency, long life and high reliability.
Remote control
* All-aluminum: better heat dissipation, can carry more electricity.
* More consistent. High efficiency, long life and high reliability.
Remote control
* Supports all kinds of point, line and surface light sources. Handles regular and irregular shapes.
* Uses alternating current (AC). Each unit has its own program, no interference between them.
* Works with regular RGB lights and RGBW lights. Supports AC synchronization.
* Uses alternating current (AC). Each unit has its own program, no interference between them.
* Works with regular RGB lights and RGBW lights. Supports AC synchronization.
Tips：Different products have different features and functions. The above info doesn't show all products' features. For details, please send an inquiry to the sales staff.
Pangui delivery
Shipping:
By air or by sea. The delivery time is affected by factors such as the type of customization, the availability of inventory products, and the quantity.
The goods are generally dispatched within 3 to 5 days. For large orders, the delivery time will be 15 to 30 days.
Packing:
Light products by carton ( hard tube,PE film and kraft paper)
Shipping:
By air or by sea. The delivery time is affected by factors such as the type of customization, the availability of inventory products, and the quantity.
The goods are generally dispatched within 3 to 5 days. For large orders, the delivery time will be 15 to 30 days.
Company Introduction
Pangui Introduction

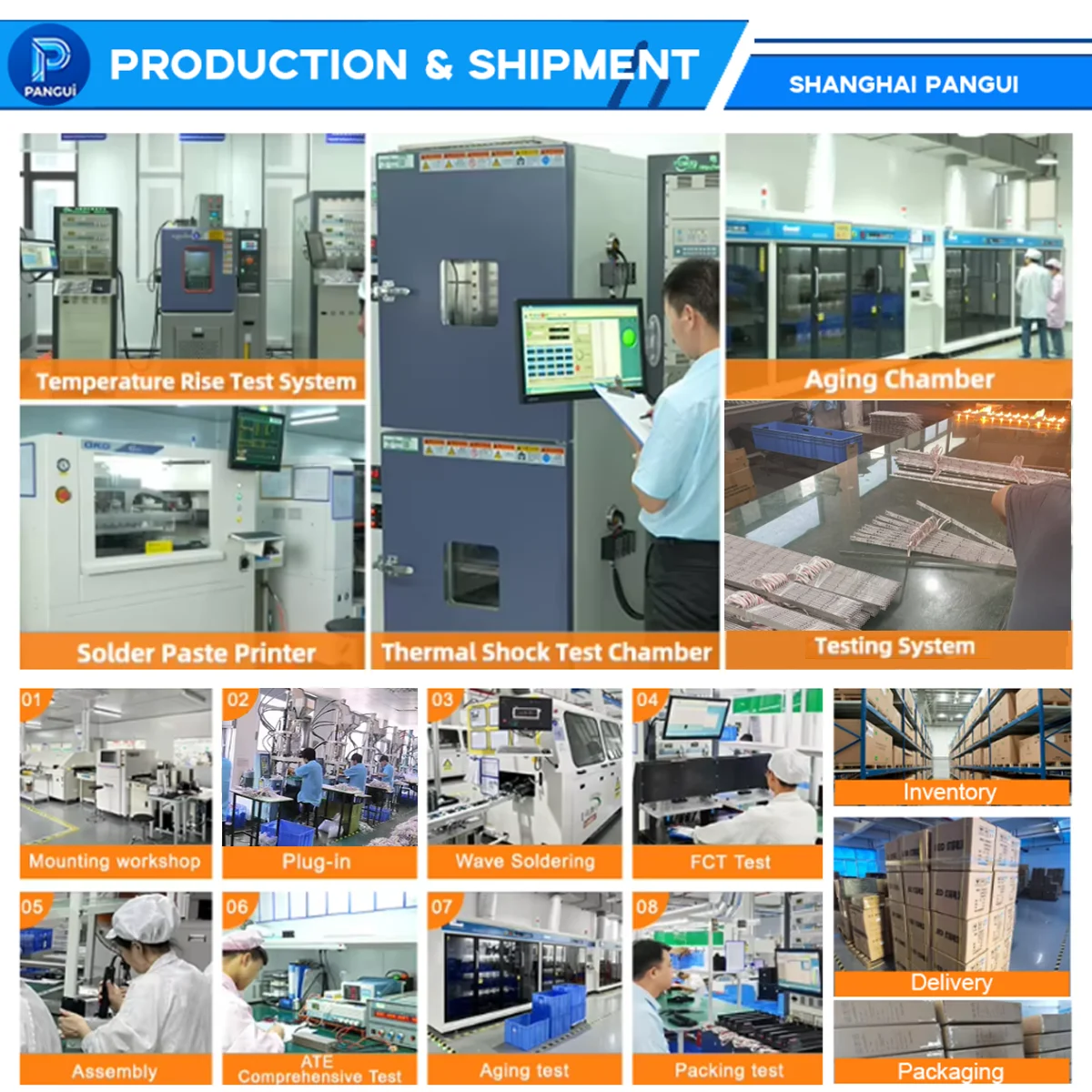

Shanghai Pangui Co., Ltd. was established in 2003, engaged in Lighting solution, LED light box, stretch ceiling, machine, aluminum profile, advertising light source research and development, production, sales and service.
The factory is located in Shanghai, the plant covers an area of 8000 square meters, the workshop has 76 advanced SMT production lines, processing equipment and the company's own research and development of welding machine, coil cutting machine greatly improve the stability of the product and production
efficiency.
efficiency.
At present, the monthly production capacity of led lamps is more than 50 million, the monthly production capacity of diffuse led lamps is more than 10 million, and the monthly production capacity of led pixel lamps is more than 1 billion.
Shanghai Pangui Co., Ltd. has been the world's largest manufacturer of advertising light boxes and LED light sources.
