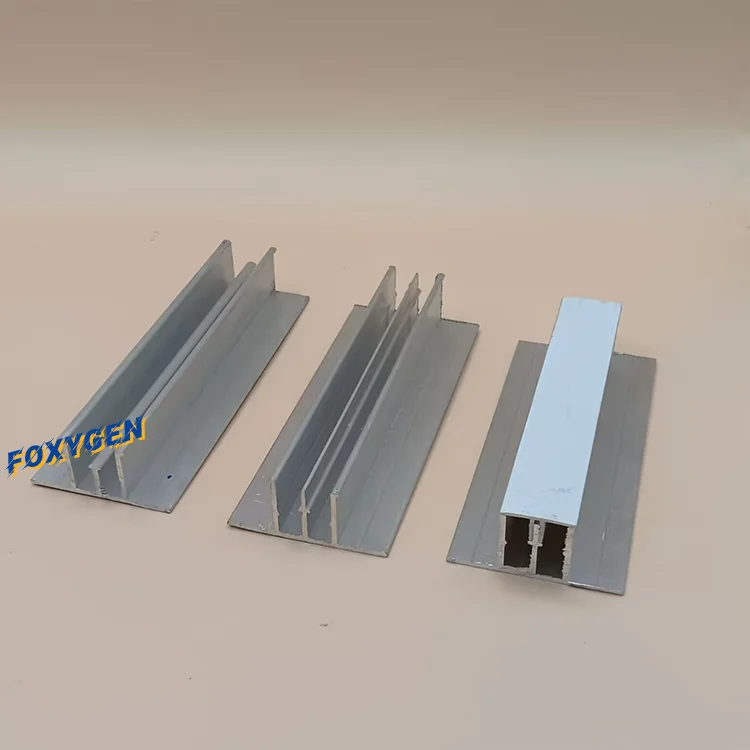

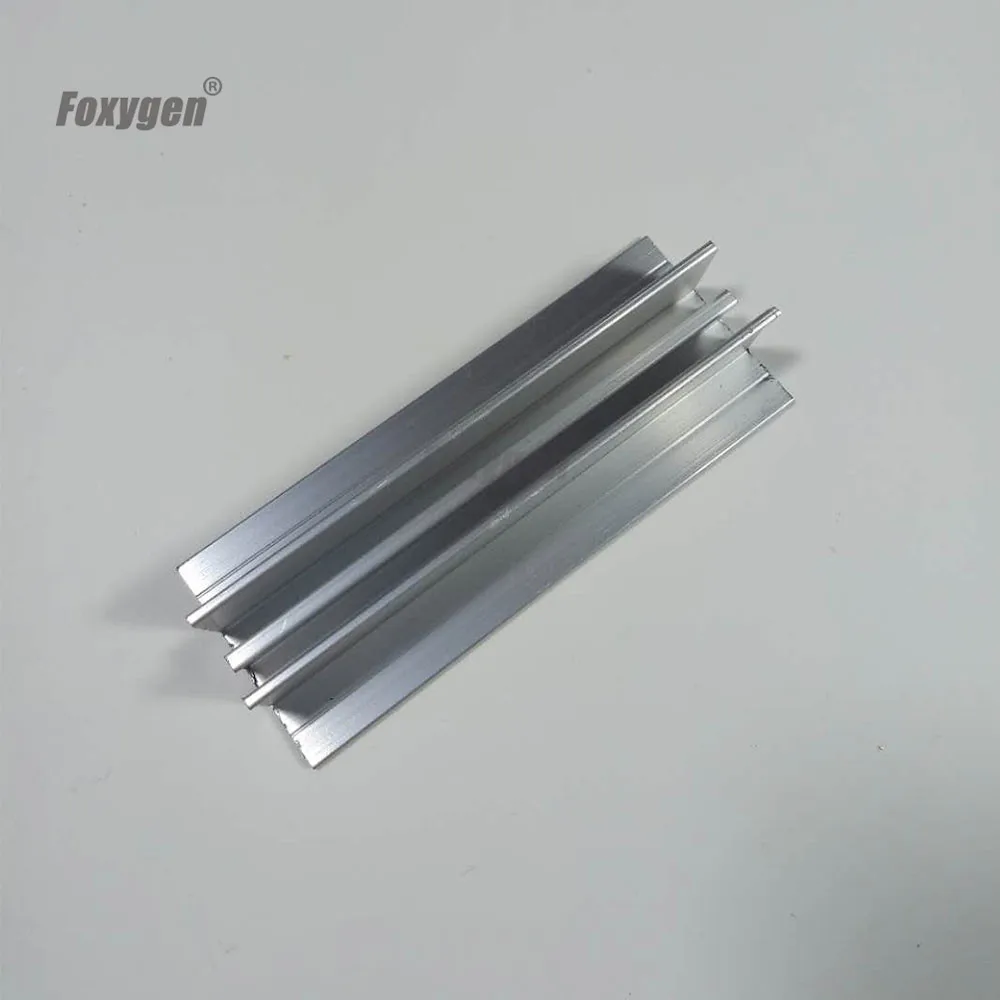

Foxygen Silver Aluminum Profile for Plastic Stretch Ceiling Film

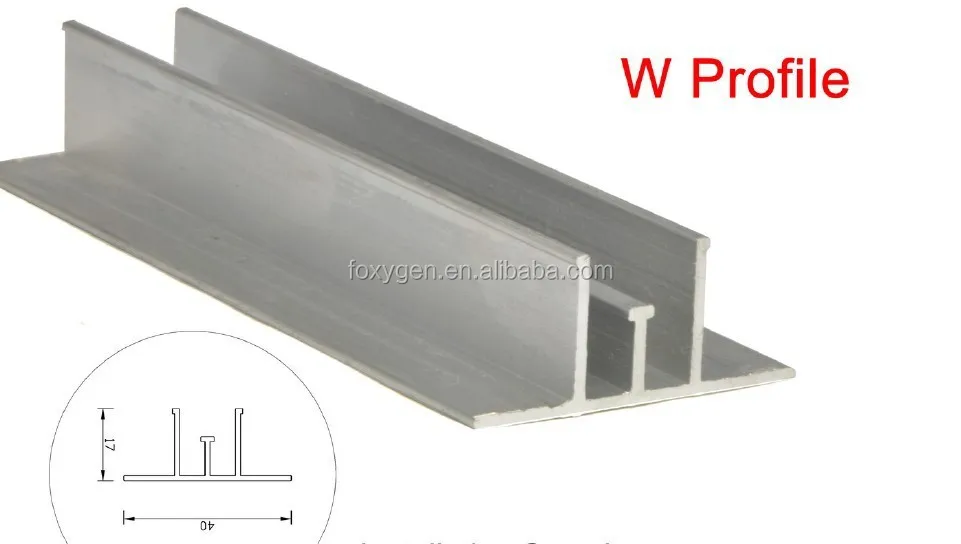

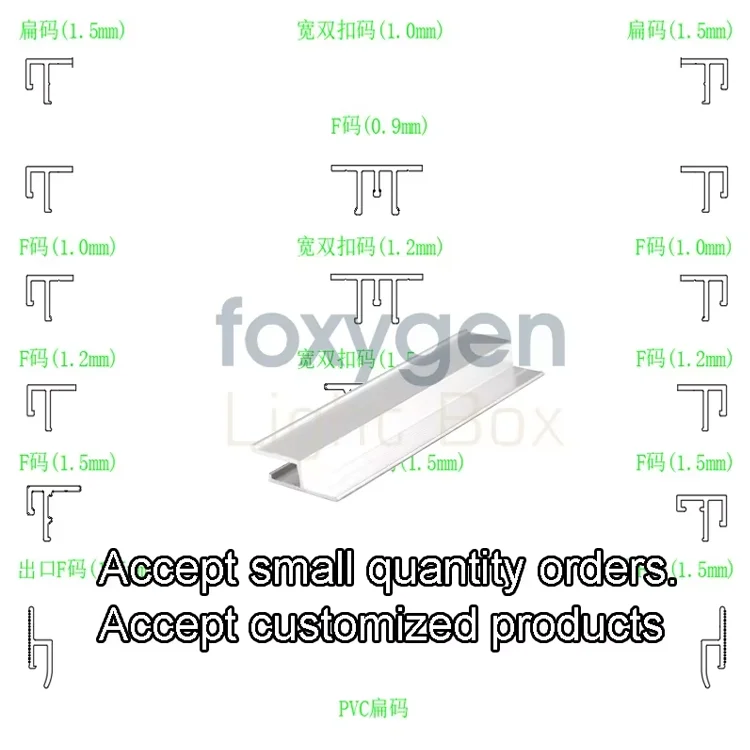

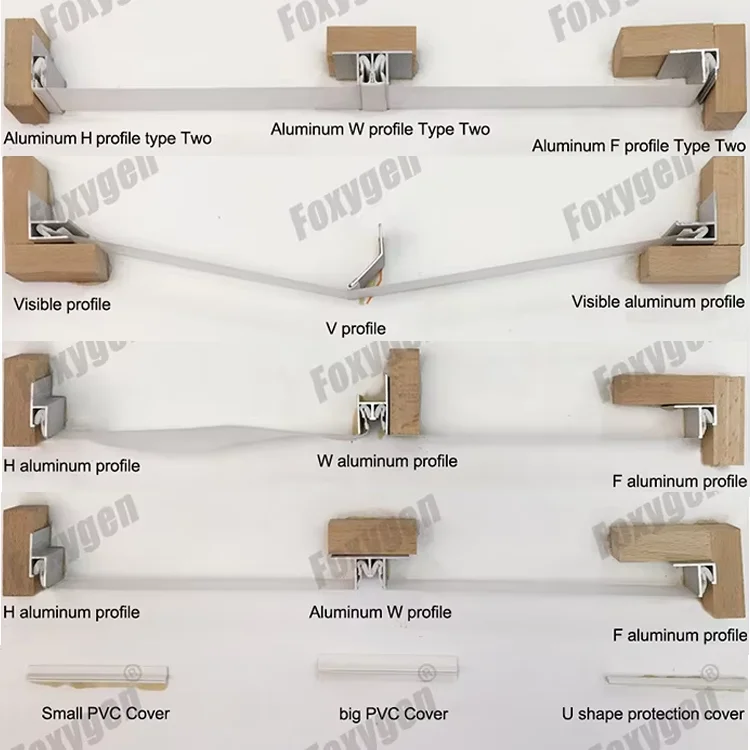

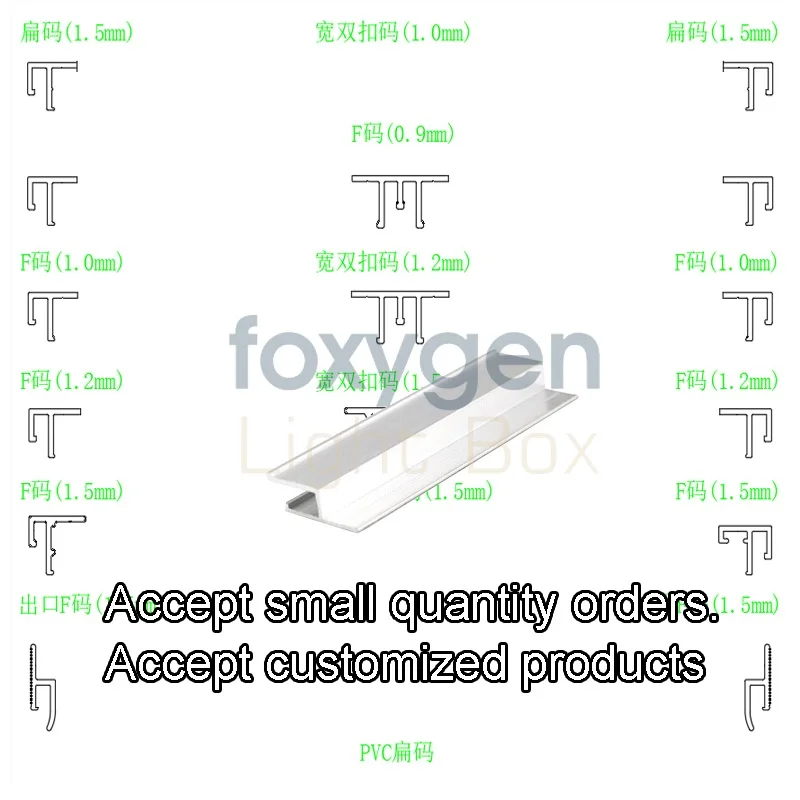

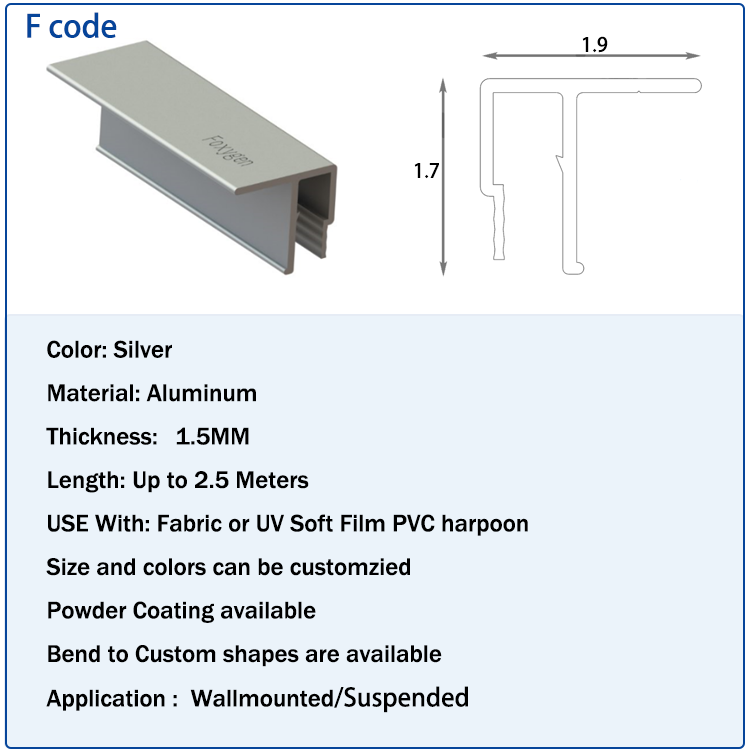

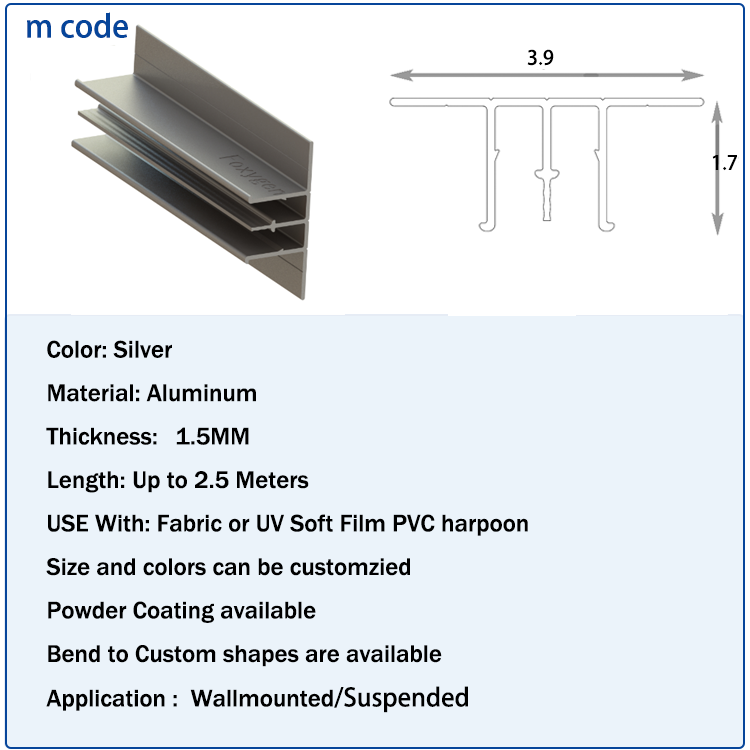

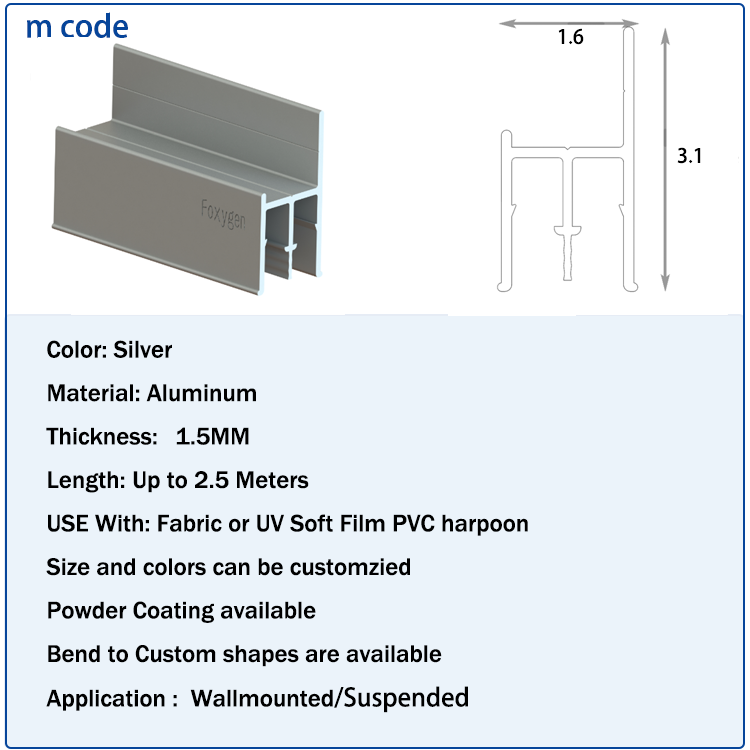

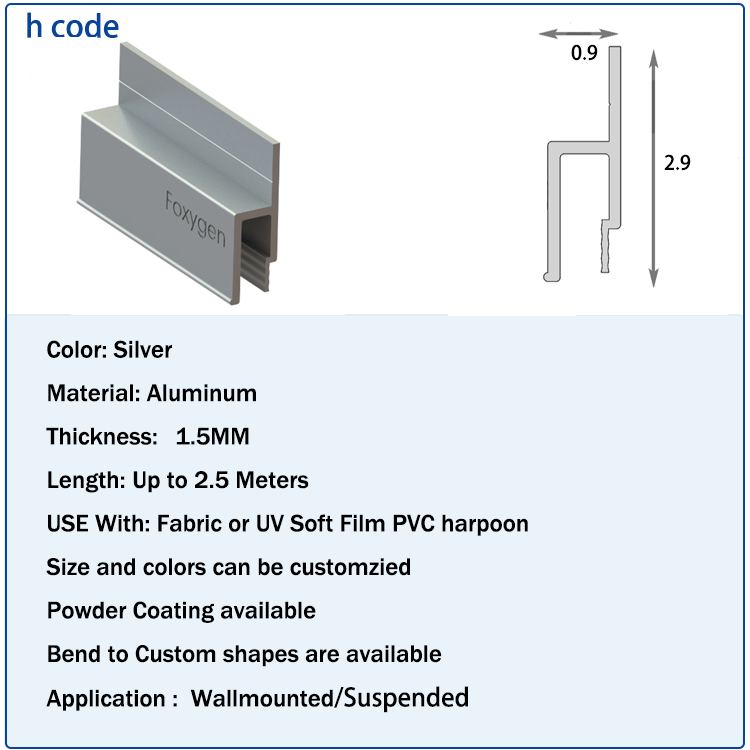

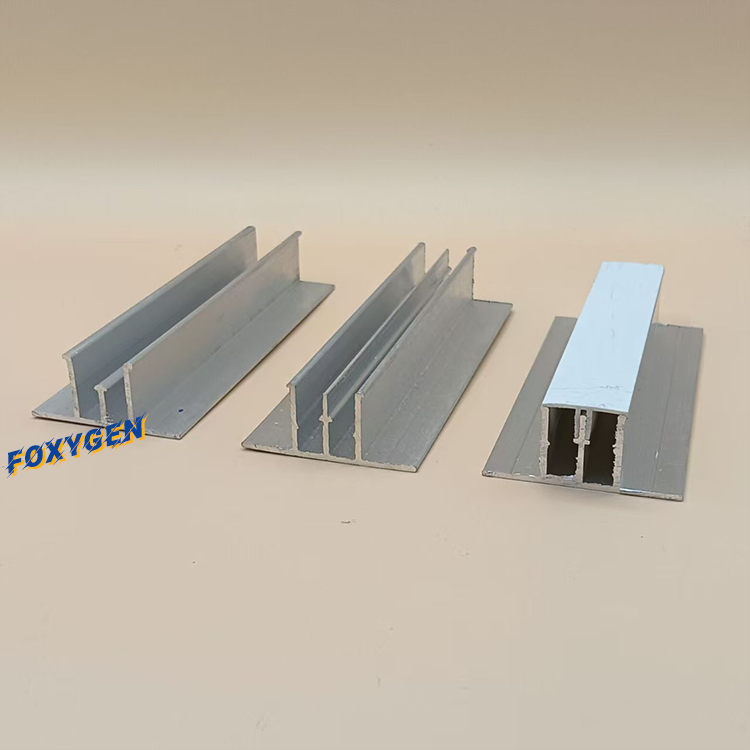

PVC Stretch Ceiling Film System W TYPE M TYPE H TYPE F TYPE V TYPE Aluminum Profiles False Ceiling Profiles Suspend Ceilings Aluminum Profile for ceiling tiles

Description

Corporate advantage

1. One on one service

2. 7x24 hour installation guidance
3. 22+ years of ODM and OEM services;
4. 120+ countries and regions with customers;
5. Provide one-stop comprehensive solution services;
6. More than 120 different models of modular products can be freely designed;

7. 100% recyclable materials,B1 fire protection level fabric graphic display

Get a coupon!!！

FOXYGEN Service:

1.Free Installation Video Collection

2.Free Directories PDF Collection

3.Free Training PPT Collection

We are a company that values customers' satisfaction. We always aim at producing and delivering quality stretch ceilings that meet all your needs.

FOXYGEN Stretch ceiling limited time offers, super discount ever.

welcome to consult us.

If you need other needs,please contact us before order. Contact now

Specification

Product name	Light Strip Aluminum Profile
Brand	FOXYGEN
Origin	Shanghai, China
Material	Aluminum Frame (Gold, silver, black, etc)
Frame Width	40mm/50mm/60mm/80mm/100mm/120mm/160mm/180mm or Custom
Typical Length	1M 2M 3M (Customized)
Accessories	End caps / PC Diffuser
OEM & ODM	Both
Hang type	wall mounted or free standing or hanging
Features	Even illumination, stylish appearance
		Easy assembly, portable and economical
		Wall mounted, ceiling suspended, or free-standing
		Frame size up to 100mx3m
Deep processing	Cutting, drilling, machining, punching, bending, tapping and so on
Characteristic	1.Neat and beautiful fine lines on the surface. 2. National standard aluminium billets are adopted. 3. With our even anodizing process, which is adopted for protecting the surface. 4. Small order is acceptable. 5. Customized Extrusion as per your drawing.
Process Flow	Mould Development--Aluminium Billets---Heating Up---Moulding with Raw Aluminium---Surface Treatment and Color
Warranty	1year
Packing	flight case/wooden case/paper carton
Delivery Time	5-15 working days after get deposit

Products Details

Key Points

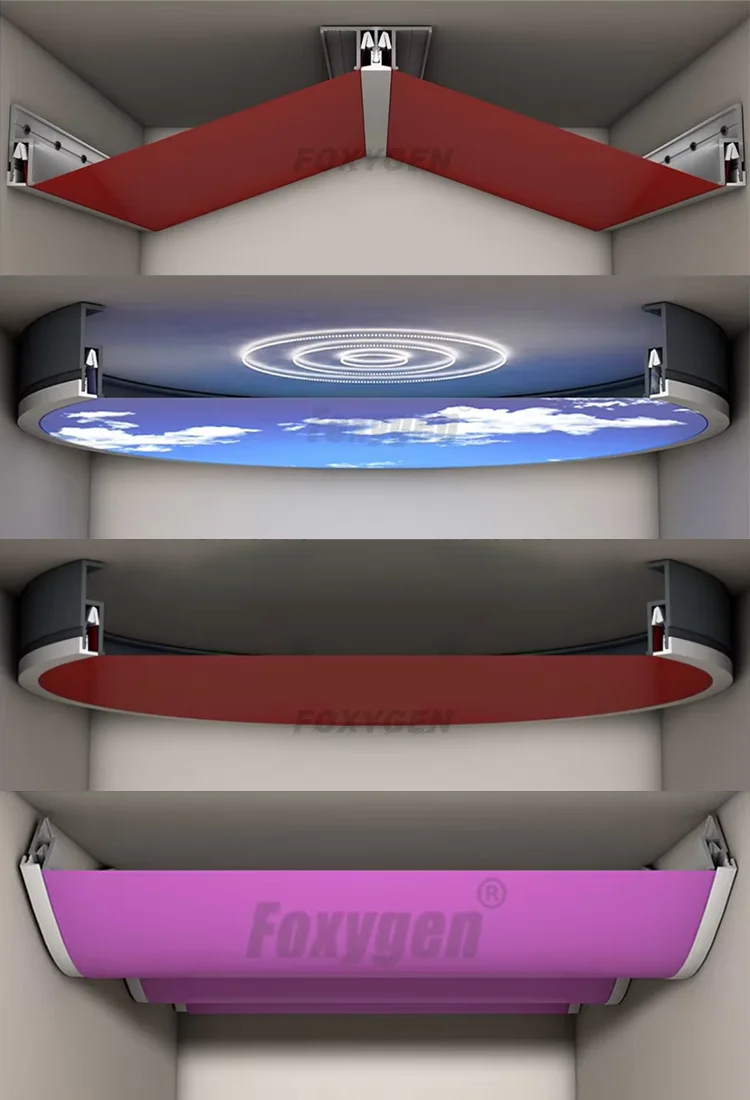

1.Dual-Function Design: Stretch ceiling profiles serve two purposes simultaneously: facilitating the installation of both lighting systems and stretch ceiling films.

2. Cost-Effective Interior Transformation: This contemporary solution enables a full revamp of interior aesthetics quickly,
eliminating the need for intricate, expensive structural work.
3. Integrated Lighting Focus: A primary feature of the product is its integration of lighting within stretch film installations.
4.Seamless Aesthetic: After installation, the light line of the ALL STARS Lighting profile sits perfectly flush with the surface, ensuring a smooth, unobtrusive look.
5. Versatile Lighting Effects: Its modern design allows for easy connection of LED profiles in sequences, enabling the creation of unique lighting effects—an approach increasingly favored by leading interior designers.
6. Simple Installation: The profile is mounted to the surface using appropriately chosen screws.

7. Specialized Attachment Mechanism: The section of the profile housing the LEDs includes dedicated grooves, which function as anchor
points for the harpoons of the stretch ceiling film.

For more information, please consult!!

Alloy	6063 %	6063A %	6061 %	6082 %
Si	0.2~0.6	0.3~0.6	0.3~0.6	0.7~1.3
Fe	0.35	0.15~0.35	0.7	0.5
Cu	0.1	0.1	0.15~0.4	0.1
Mn	0.1	0.15	0.15	0.4~1
Mg	0.45~0.9	0.6~0.9	0.8~1.2	0.8~1.2
Gr	0.1	0.05	0.04~0.35	0.25
Zn	0.1	0.15	0.25	0.2
Ti	0.1	0.1	0.15	0.1
Other(each)	0.05	0.05	0.05	0.5
Other(Total)	0.15	0.15	0.15	0.15
Al	Remainder	Remainder	Remainder	Remainder

Click here to get a Free Previous Sample!

Installation Instructions

Installation steps

1. Mark a line on the wall 10 cm away from the ceiling to determine the installation position of the aluminum profile.
2. Use screws to mount the aluminum profile on the wall, aligning it with the marked line.
3. Polish the sharp edges of the aluminum profile with aluminum foil to prevent scratches.
4. Install the film diagonally to ensure a perfect finish for the ceiling decoration.

Product packaging

PACKAGING AND DELIVERY

-Free samples for customers to test our quality. -1-68kg by courier, about 5-7 days.
-Large quantity delivered by sea, sea shipping need about 10-45 days based on the different country.
-A full range sea,air and express logistics system to provide you
the most convenient logistics experience, rapid response to save your time.

Company Profile

About Us

FOXYGEN is a manufacturer who focus on advertising LED lightboxes,stretch fabric film materials more than 22 years now. With no MOQ, an experienced R&D team, complete production lines, and unequalled responsiveness.Foxygen is now the top-volume Chinese source of advertising led lightboxes film and its accessories

1. Rich experience, industry leader
2. Strong R&D department with over 20 engineers and technicians
3. 8,000 square meters factory area
4. 17 professional assembly lines
5. Strong R&D department with over 20 engineers and technicians
6. No Moq,We accept small orders.
7. 450,000 Square meter/month, strong capability
8. ISO9001: 2015, BSCI, WAL-MART audit passed, strict quality control system
9. 7 days delivery time
10. Goods 100% inspected in production, randomly inspect twice before shipment

FAQ

About Us

1) Q:What is the minuimum order?

A: Minimum order quantity for most of our products is 1 piece/set.

2) Q: What payment methods does your company accept ?
A: We accept most of the payment methods, but mainly work on T/T , L/C terms.

3) Q: Are you a trusted supplier?
A: Our company has been established more than 5 years ago and we have long-term partnerships with many customers around the world. Time and our customers’ positive feedback have proved we're a reliable supplier.

4)Q: What’re the shipment terms and delivery time of your company?
A: This depends on the quantity of your order . In average, production time is 2-3 weeks. Delivery by the air normally takes 3-7days, by the sea it is usually 3-4 weeks. The overall cost depends on your final order and the destination.

5) Q: Is it possible to have my logo on your product?
A: Yes, we can apply your logo on our products. However, an extra fee may be charged.

6) Q: Can I get your samples first?
A : Yes, we can make a sample before launching a mass production. Please note that sample production fee may be added to your order.
